HPC System Guide

Introduction

High-Performance Computing (HPC) clusters are powerful systems used for running large-scale scientific and engineering tasks. Most HPC clusters run on Linux, and you’ll interact with them mainly through the command line. This guide will help you get started with the basics: how to move around the system, use software modules, and run jobs.

Before we dive in, let’s go over a few important terms.

What is a Shell?

A shell is a program that lets you talk to the operating system by typing commands. You use a shell through a terminal (a command-line interface) or a graphical user interface (GUI).

Examples:

• On Windows, the GUI is called File Explorer (explorer.exe), and the terminals are Command Prompt (cmd.exe) and PowerShell.

• On macOS, the GUI is Finder, and the terminal is called Terminal.

• On Linux, you usually use a terminal with a shell like bash.

Most HPC systems use bash as the default shell, and that’s what you’ll be using when you log in.

What is case-sensitivity?

A case-sensitive system is one that distinguishes between uppercase and lowercase letters in text. If you are a Windows user you may have noticed that a letter is treated the same whether it is lower-case or upper-case. For example: “hello”, “HeLlo”, and “HELLO” are all the same. Thus, Windows is NOT a case-sensitive system.

On the other hand, macOS and Linux systems ARE case-sensitive. This is an important distinction because when you navigate through folders, create files, etc., in our systems you MUST ALWAYS USE the right cases.

Connecting to the Cluster

To use the cluster, you’ll connect to it from your own computer using a tool called SSH (Secure Shell). SSH lets you open a remote session on the cluster so you can run commands as if you were sitting in front of it.

SSH is available by default on:

• Windows PowerShell (use ssh or ssh.exe)

• macOS Terminal

• Linux Terminal

> ⚠️ If you’re on Windows, use PowerShell, not Command Prompt.

To connect, use this command:

ssh your_username@cluster_name.rc.louisville.edu

Replace:

• your_username with your actual HPC username.

• cluster_name with the name of the cluster (e.g., zurada).

Example:

ssh jd01@zurada.rc.louisville.edu

Once connected, you’ll see a prompt like this:

[jd01@login01 ~]$

Here’s what it means:

• jd01 - Your username.

• login01 - The login node you’re connected to.

• ~ - Your home directory (similar to C:\Users\yourname on Windows).

We’ll explain more about the Linux file system in the next section.

Understanding Filesystems

What is a Filesystem?

A filesystem is the method an operating system uses to organize and store data on storage devices such as hard drives or SSDs. It defines how files and directories are named, stored, accessed, and structured. Most modern operating systems use a hierarchical filesystem, where files are organized in a tree-like structure starting from a root directory.

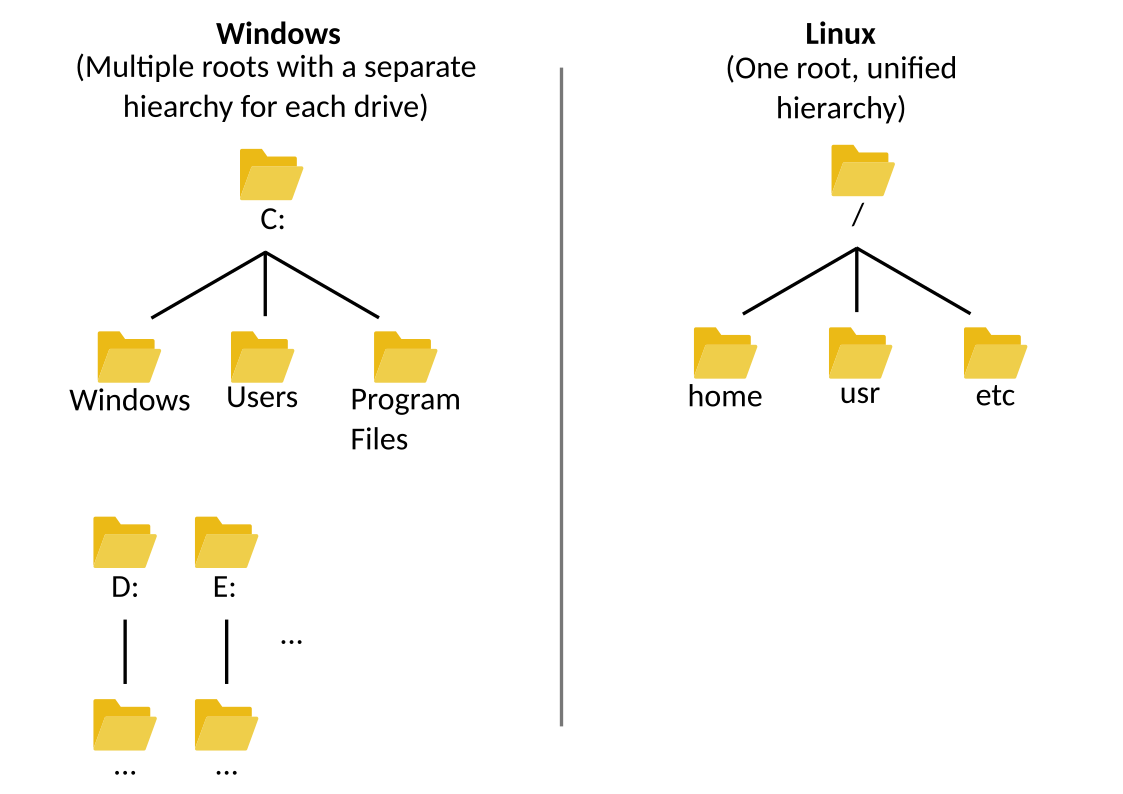

Filesystem Hierarchies

All major operating systems—Linux, Windows, and macOS—use hierarchical filesystems, but they differ in how the root and subdirectories are structured.

Linux and macOS

• Both Linux and macOS have a single root directory, represented by the forward slash: /.

• All other directories branch off from this root.

• Common directories under / include:

  • /usr - Contains installed applications and system utilities.

  • /home - User directories; similar to C:\Users in Windows.

  • /boot - Boot loader files.

  • /dev - Device files (e.g., drives, network interfaces).

  • /etc - System configuration files.

  • /lib - Shared system libraries.

Windows

• Windows uses multiple root directories, each represented by a drive letter (e.g., C:, D:).

• Each drive has its own independent hierarchy.

• The primary system drive (usually C:) contains:

  • C:\Windows - Most system files and configurations.

  • C:\Program Files and C:\Program Files (x86) - Installed applications.

  • C:\Users - User directories, analogous to Linux’s /home.

Navigating the filesystem

Filesystem locations (aka. paths)

You indentify a location in the filesystem through a path, which has 3 elements: A root, a separator, and a folder or file name.

• Windows:

  • rule to make a path: root + separator + folder name + separator + … + separator + (final) folder or file

  • root: A letter followed by :, such as C:, or D:.

  • separator: The character \.

  • example of a path: C:\Windows\System32

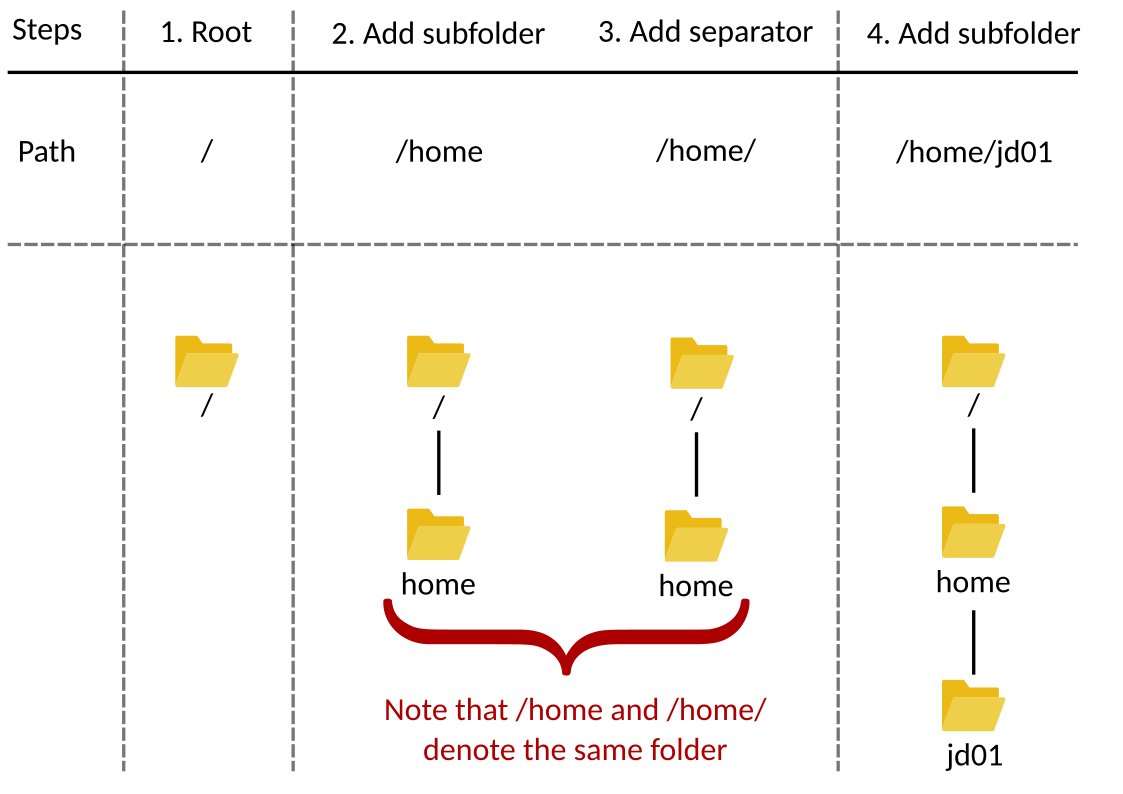

• Linux and macOS:

  • rule to make a path: root + folder name + separator + … + separator + (final) folder or file

  • root: The character /.

  • separator: The character / (YES, it’s the same as the root. Simply put, the first / in the path is always the root).

  • example of a path: /home/jd01.



Our HPC systems use a Linux-based hierarchical filesystem, where everything starts from the root directory / (if this statement confuses you, please read section Filesystem Hierarchies).

Key directories you’ll interact with:

• /home/<username> - Your personal persistent space for scripts, logs, files, etc. Storage is limited to 25G.

• /work/<username> - Temporary storage for big files, job inputs and outputs, etc. Files older than 30 days are purged.

• /mnt/local/scratch/<username> - Temporary storage for files and job outputs. Only available in compute nodes and automatically purged after a job’s completion. This is explained in more detail in section Understanding Storage on Compute Nodes, but we recommend you finish reading this guide before jumping there.

The working directory

One important concept to understand when using the shell (in our case, bash) to navigate the filesystem is the idea of the working directory. The working directory is the folder where the shell assumes you want to work. Any command you run that creates, deletes, or modifies files will do so in this location—unless you tell it to use a different path.

When you log into one of our HPC systems, you automatically “land” in your home directory: /home/your_username. At that moment, your working directory is your home directory. You can confirm this by executing the pwd command. This will print the path to your current working directory.

Why does it matter? Let’s say you run the following command:

touch notes.txt

This creates a file called notes.txt in your current working directory. If you’re in /home/your_username, the file will be created there. Now, if you change to another directory:

cd /tmp

And run the same command:

touch notes.txt

The file will now be created in /tmp, because that’s your new working directory.

Managing files and directories

You can move between directories using the cd command:

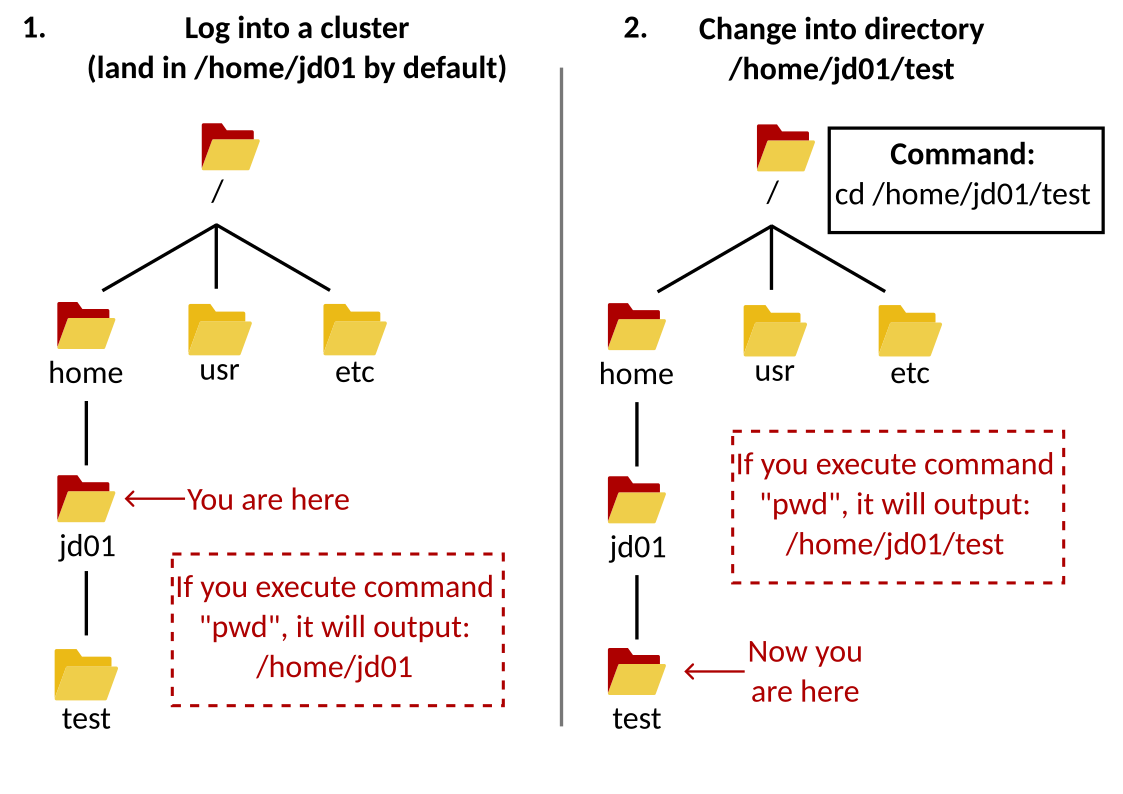

• cd /path/to/directory - Change directory. Here is an example:

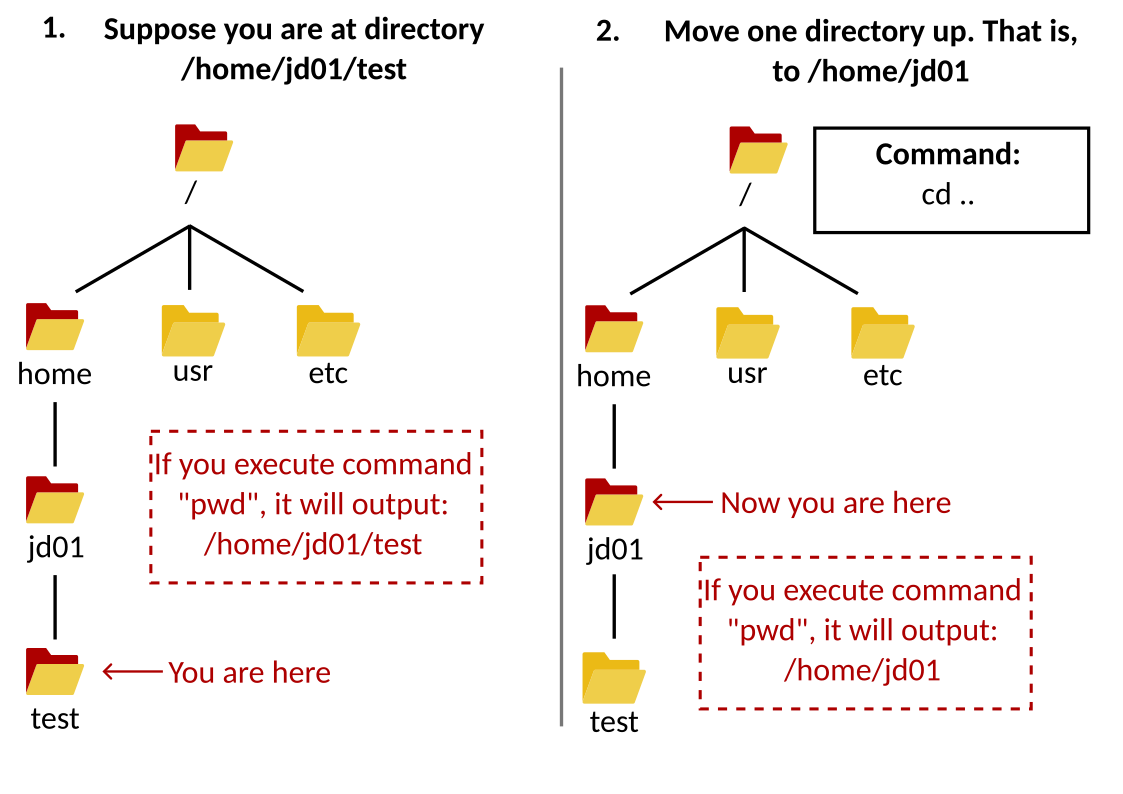

• cd .. - Go up one directory from your working directory. Here is an example:



• cd - Go back to your home directory at any point.

You can also list files in the current working directory using: ls, or ls -a to also include hidden files. Other useful commands include:

• pwd - Print current working directory.

• mkdir /path/to/new/directory - Make a new directory

• du -sh /path/to/directory - Show disk usage of a directory.

• find /path/to/directory -name filename - Search for files within a directory.

• cp /path/to/source /path/to/destination - Copy files.

• mv /path/to/source /path/to/destination - Move or rename files.

• rm /path/to/file - Delete files.

• tar -czf archive.tar.gz /path/to/some/file /path/to/some/other/file - Compress files into archive.tar.gz.

Using Modules

HPC environments use environment modules to manage software versions.

Basic commands:

• module avail - List available modules.

• module load <module-name> - Load a module.

• module list - Show currently loaded modules.

• module unload <module-name> - Unload a module.

• module purge - Unload all modules.

Example:

module load gcc/11.2.0
module load python/3.10.4

Note: Always load required modules in your job scripts to ensure consistency.
